Hub Conversion


Here is a step by step conversion of a XS650 rear hub from solid drive to cushion drive

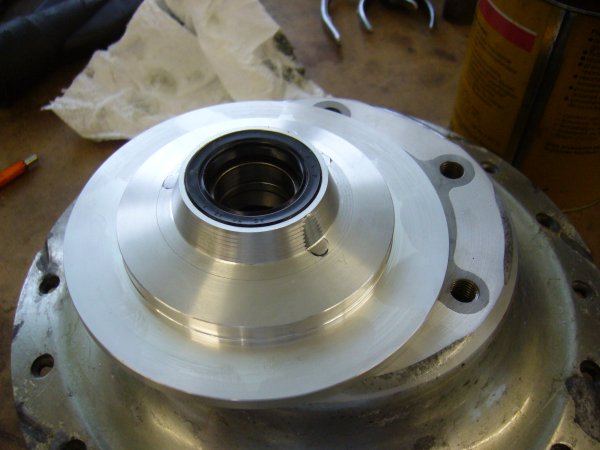

First make the sprocket mounting piece.

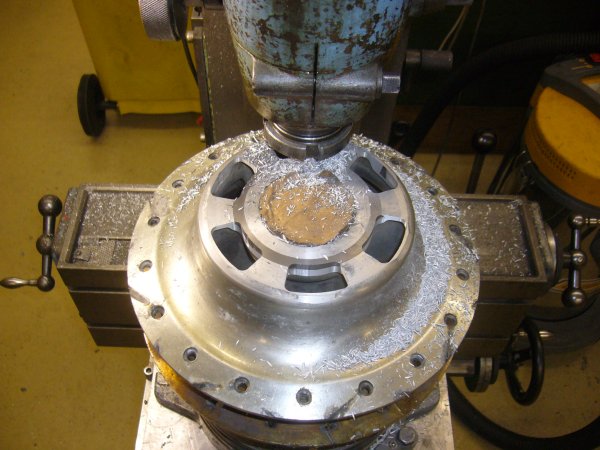

Then machine the slots for the spacers to attach the sprocket mount to the rubbers.

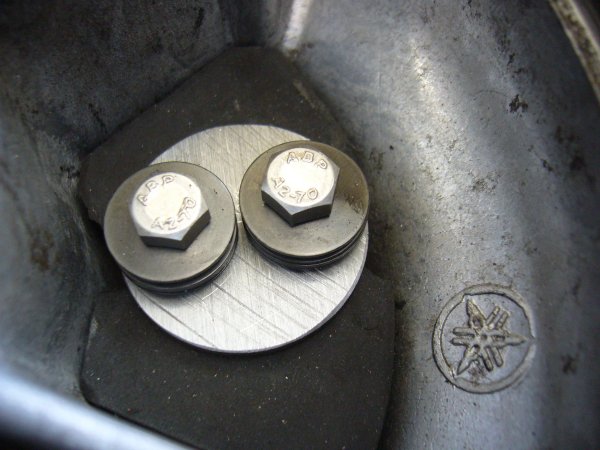

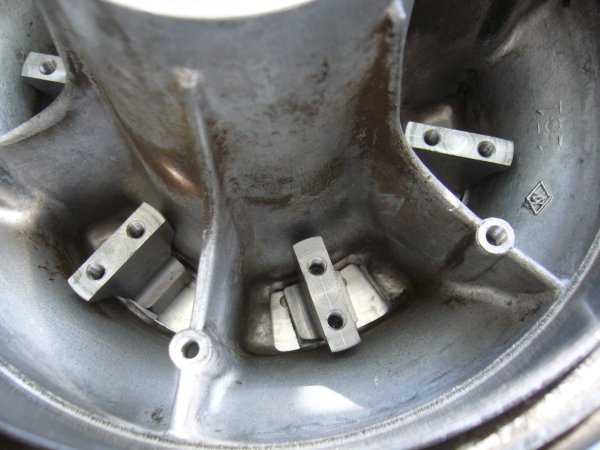

Spacers are then made to join the sprocket mounting ring to the rubbers inside the brake drum.

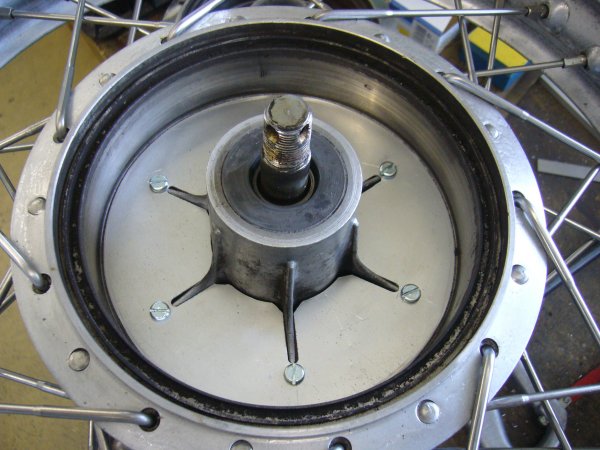

Lastly a neat cover is made to cover the rubbers and bolts tying it all together.

Pictures supplied by Vernon Blair
